The ET5C108 is dual−rail very low dropout voltage regulator that is capable of providing an output current in excess of 3.0 A with a dropout voltage of 75 mV typ. at full load current.The soft start time can be adjusted by changing the capacitance on the SS port.


ET5C108 output accuracy can up to +1% and Power−supply rejection can up to 75dB@1KHz and load transient low to +2% VOUT.This series contains adjustable output voltage version with output voltage down to 0.8 V.The power good pin (PG) can also monitor whether other chips are working properly.

Features

• Output Current in Excess of 3.0 A
• VIN Range: 0.8 V to 5.5 V
• VBIAS Range: 2.2 V to 5.5 V
• Output Voltage Range: 0.8 V to 3.6 V
• Dropout Voltage: 95 m V at 3 A
• High PSRR(1KHz,75dB),Low noise(18μV*VOUT)
• Open Drain Power Good Output
• Excellent Transient Response
• Programmable Soft-Start
• DFN10-3x3 package

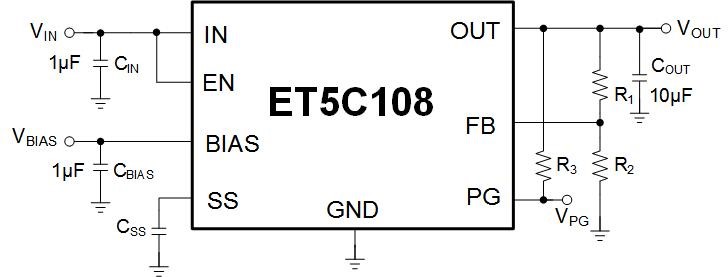

Typical application
